CNC Vertical Lathe Machine

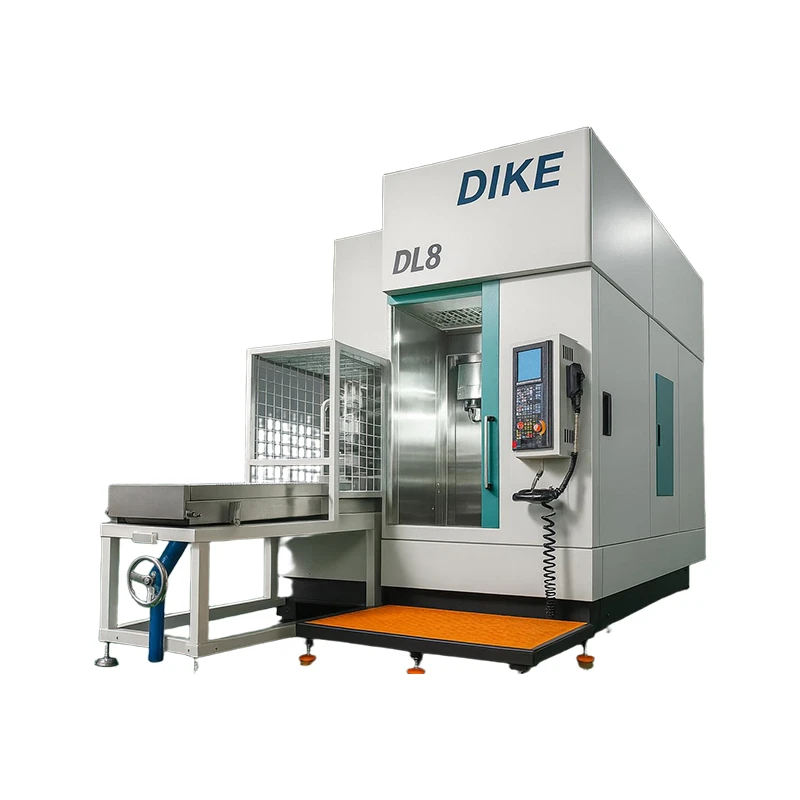

CNC Vertical Lathe Machine is designed for turning, boring, facing, grooving, and threading medium-sized round components. Typical workpieces include flanges, hubs, rings, housings, and valve bodies. It is widely used in automotive, energy, machinery manufacturing, hydraulic, and industrial equipment industries.

Send Inquiry

Description

Technical Parameters

Product Overview

product-1024-1536

Key Machining Capabilities

Facing
Machining flat end surfaces on round workpieces.

OD Turning
Processing external cylindrical and stepped surfaces.

ID Boring
Machining internal diameters, holes, and cavities.

Grooving
Creating internal or external grooves and recesses.

Thread Cutting
Producing internal and external threads.

Taper Turning
Machining conical and tapered profiles.

Contour Turning
Processing curved, profiled, and complex rotational geometries.

Drilling & Center Hole Machining
Performing hole-making operations on rotational parts.

product-1024-1536

Technical Advantages

Vertical Structure Design helps support heavy workpieces with gravity-assisted loading and stable clamping.

Rigid Machine Base reduces vibration during interrupted and heavy-duty cutting operations.

Direct Power Transmission System enables efficient torque delivery to the spindle.

Optimized Thermal Layout helps minimize thermal influence during long machining cycles.

Servo-Driven Feed Axes provide smooth motion and consistent positioning performance.

Automation-Ready Architecture supports integration with robotic loading and automated production cells.

product-1024-1536

Technical Specifications

Technical Data
Swing dia., max.	Ø550	mm
Workpiece dia., max.	Ø400	mm
Workpiece length, max.	200	mm
Max. Spindle speed	3000	r/min
X/Y/Z-axis travel	590/600	mm
X/Y/Z-axis rapid traverse	15-20	m/min
Repeat positioning accuracy	0.003	mm
Spindle run out	0.005	mm
Grating absolute measurement resolution	0.001	mm

product-1024-1536

Industry Applications

Automotive Components
Brake discs, wheel hubs, bearing housings, flywheels, and transmission parts.

Valve & Pump Manufacturing
Valve bodies, valve seats, pump casings, impellers, and sealing components.

Energy Equipment
Flanges, pipe connectors, turbine components, and power transmission parts.

Hydraulic & Pneumatic Systems
Cylinder covers, hydraulic manifolds, end caps, and housing components.

Industrial Machinery
Gear blanks, bearing rings, couplings, pulleys, and machine housings.

Oil & Gas Equipment
Wellhead components, pipe flanges, adapters, and pressure-retaining parts.

General Engineering
Various round metal components requiring turning, boring, grooving, and threading operations.

product-1200-1200

Controller & Component Options

Category	Available Options
CNC Controller	FANUC, Siemens, Mitsubishi, SYNTEC
Servo Motors & Drives	FANUC, Siemens, Mitsubishi, Yaskawa
Spindle Motor	FANUC, Siemens, Mitsubishi, Local Premium Brands
Linear Guideways	HIWIN, PMI, THK
Ball Screws	THK, NSK, PMI
Bearings	NSK, SKF, FAG
Hydraulic System	Yuken, Nachi, Hydraulic Station (Custom Specified)
Lubrication System	Bijur Delimon, HERG, Automatic Lubrication Systems
Coolant System	Standard Flood Coolant, High-Pressure Coolant Option
Chip Conveyor	Chain Type, Hinge Belt Type, Scraper Type
Tool Holder System	BMT Tooling, VDI Tooling, Custom Tool Interfaces
Electrical Components	Schneider, Siemens, Mitsubishi, Omron

Customization Options

01/

Workpiece-Based Customization

Custom chuck diameter
Special workpiece loading height
Extended turning diameter capacity
Customized spindle nose configuration

02/

Automation Integration

Robotic loading interface
Gantry loading system
Automatic workpiece transfer
Production line connectivity

03/

Electrical & Compliance Requirements

Voltage and frequency customization
CE-compliant electrical configuration
UL-oriented electrical design
Multilingual operation interface

04/

Workholding & Tooling

Custom soft jaws
Hydraulic fixtures
Special clamping solutions
Dedicated workpiece locating fixtures

05/

Production Support Features

Automatic door system
Part catcher integration
Tool life management functions
Remote diagnostics preparation

FAQ

Q: What materials can this CNC vertical lathe machine process?

A: It is commonly used for carbon steel, alloy steel, stainless steel, cast iron, aluminum alloys, copper alloys, and similar machinable metals.

Q: What is the typical lead time for production?

A: Standard configurations are typically delivered within 45–75 days after order confirmation. Customized projects may require additional time.

Q: What warranty is provided?

A: The standard warranty period is 12 months from machine commissioning or 14 months after shipment, whichever comes first.

Q: What documents are supplied with the machine?

A: Typical documentation includes operation manuals, maintenance manuals, electrical diagrams, foundation drawings, and spare parts lists.

Q: Is overseas installation service available?

A: Yes. Remote commissioning support and on-site installation services can be arranged when required.

Q: What spare parts support is available?

A: Common spare parts remain available throughout the machine lifecycle, and recommended spare parts lists can be provided with the order.

Q: What quality checks are performed before delivery?

A: Each machine typically undergoes geometric accuracy inspection, functional testing, spindle performance verification, and trial machining before shipment.

Q: What certifications can be provided?

A: Depending on destination market requirements, CE-related documentation and other applicable compliance documents can be supplied.
